SOL-ARK 8K HYBRID SOLAR BATTERY SYSTEM Online Sale Original price was: $6,454.99.Current price is: $1,936.50.
Back to products

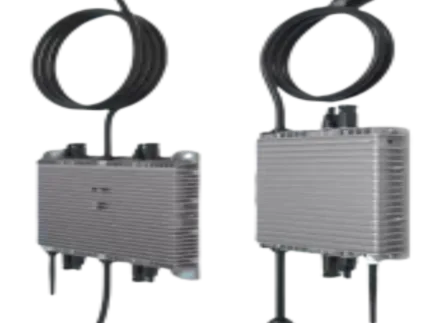

SOL-ARK MICRO INVERTERS Online Hot Sale Original price was: $2,732.00.Current price is: $819.60.

SOL-ARK 15K HYBRID SOLAR BATTERY SYSTEM Online now

Original price was: $8,604.99.Current price is: $2,581.50.

Compare
Add to wishlist
SKU: US-7669638791404 Categories: , Tags: , , , , , , , , , , ,
Description

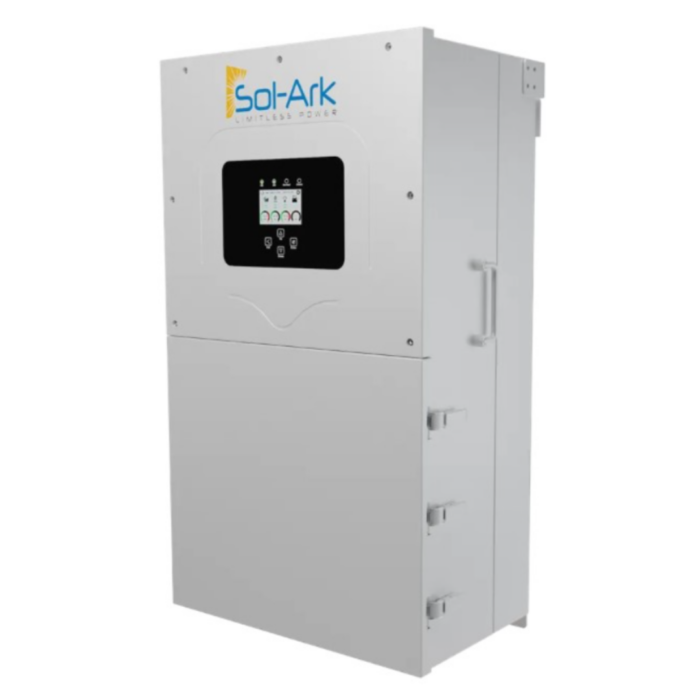

SOL-ARK 15K HYBRID SOLAR BATTERY SYSTEM

 12K HYBRID SOLAR BATTERY SYSTEM by SOL-ARK

The SOL-ARK 15K hybrid solar battery system combines the versatility of a standalone solar battery array with the convenience and flexibility of a home power grid. This intuitively designed system allows you to set your own electricity consumption levels while allowing you to monitor the status and performance of your battery efficiently through Wifi. It’s also crucial that your battery saves sufficient power output to both recharge your home appliances and supply backup power when grid support is disrupted.

This powerful battery inverter is capable of powering up to 17000 Watts of solar power. It also comes with a 10-year warranty.

Sol-Ark 12K Hybrid Inverter Features:

  • Transformerless inverter
  • Pure sine wave
  • 120/240/208V
  • Grid-tie, off-grid, or hybrid applications (can be with or without batteries)
  • Wide variety of 48V battery chemistries, from lead to lithium
  • Simultaneously manages power to battery, loads, and grid
  • Expandable
  • Highly efficient
  • Color touch screen
  • Remote monitoring from a smart device
  • Battery disconnect
  • Battery temp sensor
  • Auto-generator start
  • Rapid shut down signal
  • Current sensors
  • Battery communication
  • PV Disconnect
  • Wiring knockouts
  • WiFi

    • SOL-ARK 15K USER MANUAL
    SOL-ARK 15K SPECS SHEET
    SOL-ARK 15K BROCHURE


    SOL-ARK 15K HYBRID Specs

  • Max allowed PV DC Capacity – 17,000W
  • Max PV power delivered to Battery & AC outputs – 15,000 Watts
  • Max DC voltage – 500V@26A
  • MPPT voltage range –125-425V
  • MPPT Starting Voltage –125V
  • Number of MPPT – 3
  • Max Solar Strings Per MPPT – 2
  • Max DC Current per MPPT (Self Limiting) – 26A
  • Max AC Coupled Input (Micro/String Inverters) – 19,200W
  • Nominal AC Output Voltage – 120/240/208V split phase
  • Continuous AC Power from PV – 15,000W 62.5A-L (240V)
  • Continuous AC Power from Batteries – 12,000W 50A-L (240V)
  • Surge AC Power 10 seconds – 24,000VA L-L (240V)
  • Surge AC Power 100ms – 30,000VA L-L (240V)
  • Parallel Stacking – Yes – Up to 12
  • Frequency – 60/50Hz
  • Continuous AC Power with Grid or Generator – 48,000 W 200A L-L(240V), 24,000 W 200A L-L (120V)
  • CEC Efficiency –  96.5% (Peak 97.5%)
  • Idle Consumption Typical – No Load – 90W
  • Sell Back Power Modes – Limited to Household / Fully-Grid-Tied
  • Battery Type – Lead-Acid or Li-Ion
  • Communication to Lithium Battery – CanBus & RS485
  • Nominal DC Input – 48V
  • Capacity – 50 – 9900Ah
  • Voltage Range – 43.0 – 63.0V
  • Continuous Battery Charging Output – 275A
  • Charging Curve – 3-Stage w/ Equalization
  • Grid to Battery Charging Efficiency – 96.0%
  • Dimensions (H x W x D) – 31.8” x 183” x 10.9”
  • Weight – 85 lbs

    •
