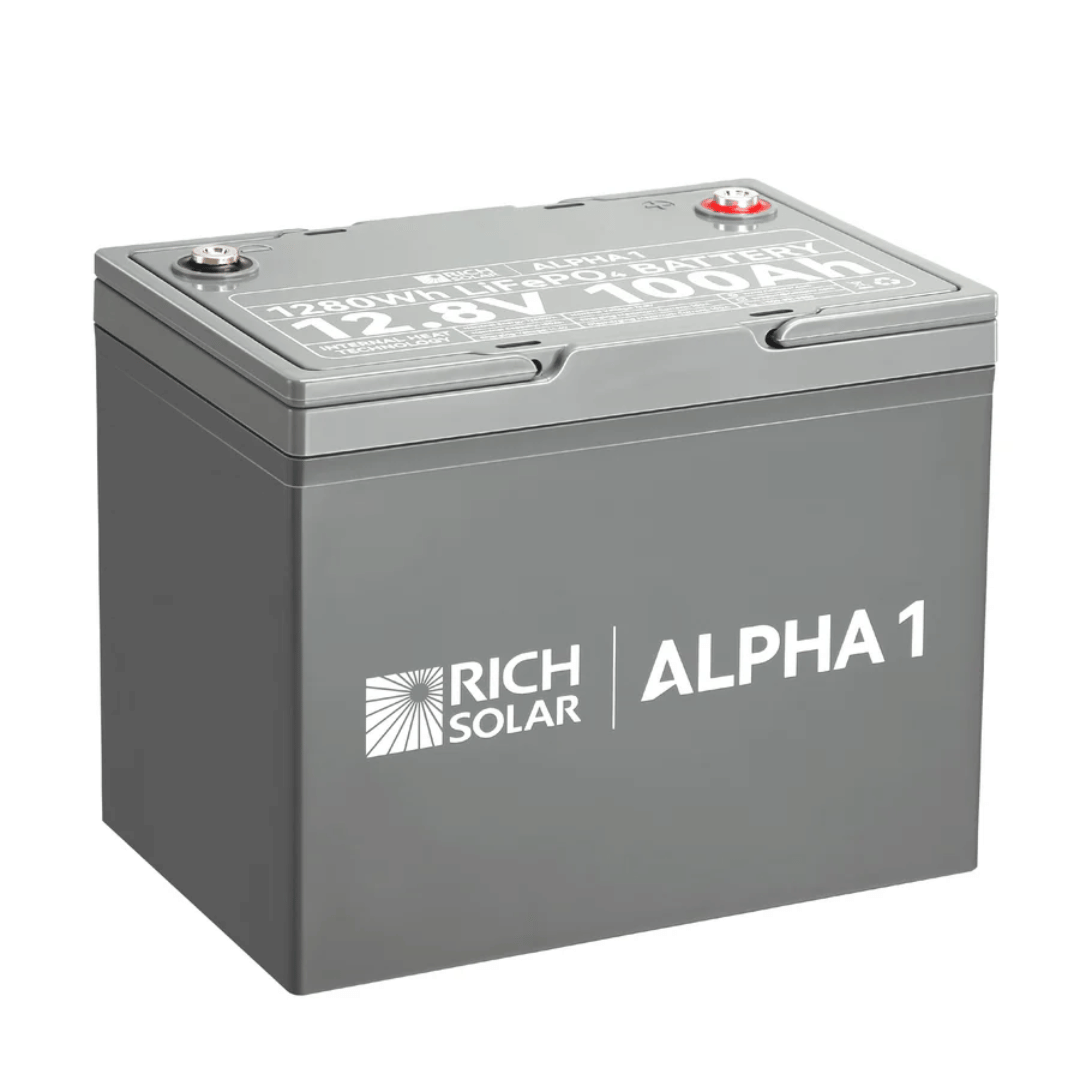

Rich Solar ALPHA LiFePO4 Lithium Iron Phosphate Battery
ALPHA LiFePO4 Lithium Iron Phosphate Battery by Rich Solar
Introducing the Rich Solar ALPHA! A game-changer in the world of 12V batteries. With its LiFePO4 Lithium Iron Phosphate build, this battery boasts an impressive cycle life and minimal maintenance requirements, outshining other battery technologies. Thanks to the advanced LiFePO4 technology, it offers superior thermal and chemical stability, ensuring top-notch safety while delivering powerful performance in a compact, lightweight design. Plus, it comes with a 10-year warranty, cutting-edge internal heating technology, and seamless Bluetooth connectivity. Whether you’re powering up for an adventure or securing your off-grid setup, the ALPHA is your reliable, high-tech companion.
Â
Rich Solar ALPHA 12V LiFePO4 Key Features
- 5000/7000 Cycles at 80% DOD
- Grade A LiFePO4 Cells, 10+ Years Lifespan
- Alpha 1 Model Weight- 24.0lb, 1/5 Lighter than Lead-acid Batteries
- Alpha 2 Model weight – 48.5lb, 1/5 Lighter than Lead-acid Batteries
- Alpha 1 Size: L10.2*W6.6*H8.3 in
- Alpha 2 Size: L20.9*W8.1*H8.5 in
- BMS Protection, Certified by UL, FCC, and UN38.3
Rich Solar ALPHA 12V LiFePO4 Lithium Iron Phosphate Battery Specs
Rich Solar ALPHA 1 Specs
Battery
Cell Type： LiFePO4 Battery
Nominal Voltage：12.8V
Nominal Capacity：100Ah
Nominal Energy：1280Wh
Cycle Life：5000 cycles at 80% DOD
BMS
BMS：100A
Maximum Charging Current：100A
Maximum Continuous Discharge Current：100A
Maximum Discharge Current 10 Seconds：110A
Charge
Charge Method： CC/CV
Charge Voltage：14.4V ± 0.2V
Recommend Charge Current：50A (0.2C)
Temperature
Charge Temperature：32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature：-4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature：14℉ to 113℉ (-10℃ to 45℃)
Self Heating
Heating Function：100W
Internal Heating Starts：< 41℉ (5℃)
Internal Heating Stops：> 50℉ (10℃)
Other Specs
Net Battery Weight：24.0lb
Size(L*W*H)：10.2×6.6×8.3in (Group 24 size)
Housing Material：ABS (Flame Retardant Plastic)
Protection Class：IP65
Warranty：10 Years
Certifications：UL1973, FCC, UN38.3
Rich Solar ALPHA 2 Specs
Battery
Cell Type： LiFePO4 Battery
Nominal Voltage：12.8V
Nominal Capacity：200Ah
Nominal Energy：2560Wh
Cycle Life：5000 cycles at 80% DOD
Maximum Expansion (Parallel & Series)：4P4S
BMS
BMS：100A
Maximum Charging Current：100A
Maximum Continuous Discharge Current：100A
Maximum Discharge Current 10 Seconds：110A
Charge
Charge Method： CC/CV
Charge Voltage：14.4V ± 0.2V
Recommend Charge Current：50A (0.2C)
Temperature
Charge Temperature：32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature：-4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature：14℉ to 113℉ (-10℃ to 45℃)
Self Heating
Heating Function：100W
Internal Heating Starts：< 41℉ (5℃)
Internal Heating Stops：> 50℉ (10℃)
Other Specs
Net Battery Weight：48.5lb
Size(L*W*H)：20.9×8.1×8.5in (Group 31 size)
Housing Material：ABS (Flame Retardant Plastic)
Protection Class：IP65
Warranty：10 Years
Certifications：UL1973, FCC, UN38.3
