Rich Solar – 20 AMP MPPT Solar Charge Controller
This Product ships in 2-5 business days.Â

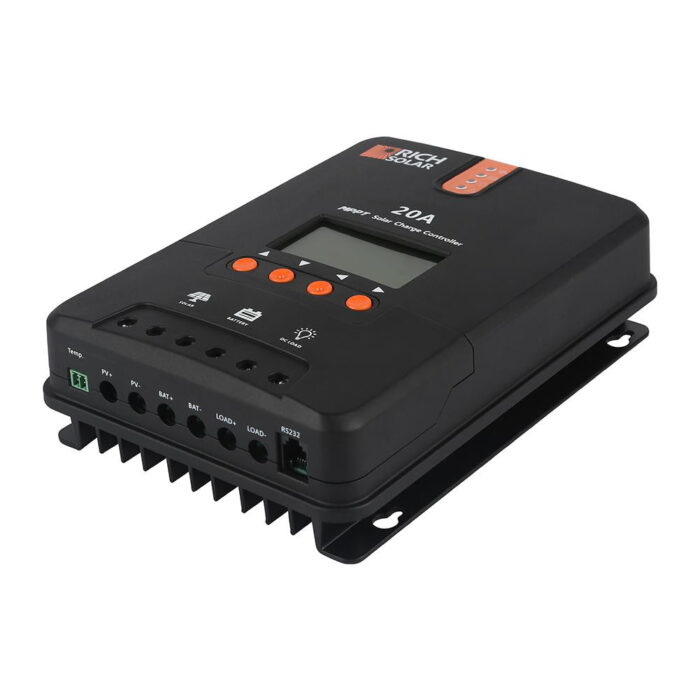

20 AMP MPPT Solar Charge Controller by Rich Solar
PRODUCT OVERVIEW
Features
- Automatically detects 12V or 24V DC system voltages
- Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
- Innovative MPPT technology with high tracking efficiency of up to 99% and peak conversion efficiency of 98%
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current
- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
- Features diverse load control; also capable of charging over-discharged lithium batteries
- Die-cast aluminum design allows for efficient heat dissipation
- RS232 port to communicate with BT-1 Bluetooth module.
Specifications
- Nominal System Voltage: 12V/24V Auto Recognition
- Rated Battery Current: 20A
- Rated Load Current: 20A
- Max. PV Input Short Current: 25A
- Max. Battery Voltage: 32V
- Max Solar Input Voltage: 100 VDC
- Mounting Oval: 0.30 x 0.18 in
- Net Weight: 3.08 lb
- Discharge Circuit Voltage Drop: ≤ 0.15V
- Overall Dimension: 8.27 x 5.94 x 2.34 inÂ
